Hi-Shear Inst. & Removal l Hand Tool l HLH150

HLH150

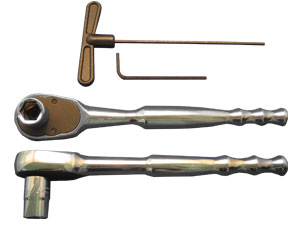

Hand Installation Tool
High Strength Wrench Tip
for Small Collars

Ordering Information

• Determine collar driving hex and pin recess hex dimensions of the fasteners to be installed.
• See the table for “M” socket hex and “G” wrench tip hex combination to match collar driving hex and pin recess hex dimensions.
Part Number Example
HLH150-250-078
HLH150
“M” Socket Hex
(Matches Collar Driving Hex)
“G”Wrench Tip Hex (Matches Pin Recess Hex)
Complete Tool Assy. Part No.
Dimensions
Socket Square Drive
Ratchet Wrench Assy. Part No.
Socket Assy. Part No
Wrench Tip Assy. Part No
A
B
C
D
E
F
3/16”
1/16"
HLH110-187-062
5.0
0.8
1.0
0.5
0.45
0.156
1/4"
HLH101/250
HLH102-187
HLH105-062
7/32”
HLH110-218-062
HLH102-218
HLH105-062
1/4”
HLH110-250-062
HLH102-250
HLH105-062
9/32”
HLH110-281-062
HLH102-281
HLH105-062
5/16”
HLH110-312-062
HLH102-312
HLH105-062
11/32”
5/64"
HLH110-343-062
HLH102-343
HLH105-062
7/32”
HLH110-218-078
HLH102-218
HLH105-078
1/4”
HLH110-250-078
HLH102-250
HLH105-078
9/32”
HLH110-281-078
HLH102-281
HLH105-078
5/16”
HLH110-312-078
HLH102-312
HLH105-078
11/32”
HLH110-343-078
HLH102-343
HLH105-078
3/8”
HLH110-375-078
HLH102-375
HLH105-078
5/16”
3/32"
HLH110-312-094
HLH102-312
HLH105-078
11/32”
HLH110-343-094
HLH102-343
HLH105-078
3/8”
HLH110-375-094
HLH102-375
HLH105-078
7/16”
HLH110-437-094
7.0
1.18
1.5
0.687
0.5
0.218
3/8"
HLH101-375
HLH102-437
HLH105-094
1/2”
HLH110-500-094
HLH102-500
HLH105-094
3/8”
1/8"
HLH110-375-125
HLH102-375-A
HLH105-094
7/16”
HLH110-437-125
HLH102-437
HLH105-125
1/2”
HLH110-500-125
HLH102-500
HLH105-125
7/16”
5/32"
HLH110-437-125
HLH102-437
HLH105-156
1/2”
HLH110-500-125
HLH102-500
HLH105-156
